Schema LoadProcedure-1.1.0.xsd


attribute form default:  unqualified
element form default:  qualified

Elements  Complex types  Simple types
LoadProcedure  DwfLoadProcedureType  OverlapTreatmentType
DwgFileComponentType  PercentageType
DwgLayerComponentType  SdfKeyTreatmentType
DwgLoadProcedureType
GeoReferenceOverrideType
LoadProcedureType
LoadProcedureTypeType
RasterLoadProcedureType
SdfLoadProcedureType
ShpLoadProcedureType


element LoadProcedure
diagram
type extension of LoadProcedureTypeType
children SdfLoadProcedure DwfLoadProcedure ShpLoadProcedure DwgLoadProcedure RasterLoadProcedure
attributes
Name  Type  Use  Default  Fixed
version  xs:string    1.1.0
source
<xs:element name="LoadProcedure">
  <xs:annotation>
    <xs:documentation>Specification of a load procedure</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="LoadProcedureTypeType">
        <xs:attribute name="version" type="xs:string" fixed="1.1.0"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

complexType DwfLoadProcedureType
diagram
type extension of LoadProcedureType
children SourceFile RootPath CoordinateSystem GenerateSpatialDataSources SpatialDataSourcesPath SpatialDataSourcesFolder GenerateLayers LayersPath LayersFolder GenerateMaps MapsPath MapsFolder GenerateSymbolLibraries SymbolLibrariesPath SymbolLibrariesFolder ResourceId
used by
element LoadProcedureTypeType/DwfLoadProcedure
source
<xs:complexType name="DwfLoadProcedureType">
  <xs:annotation>
    <xs:documentation>Extension of LoadProcedure for DWFs</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="LoadProcedureType"/>
  </xs:complexContent>
</xs:complexType>

complexType DwgFileComponentType
diagram
children Name LayerComponents
used by
element DwgLoadProcedureType/FileComponents/FileComponent
source
<xs:complexType name="DwgFileComponentType">
  <xs:annotation>
    <xs:documentation>Specifies a DWG file and its list of layers</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Name" type="xs:string">
      <xs:annotation>
        <xs:documentation>The name of the DWG file</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LayerComponents">
      <xs:annotation>
        <xs:documentation>List of DWG layers</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="LayerComponent" type="DwgLayerComponentType" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>One DWG layer</xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element DwgFileComponentType/Name
diagram
type xs:string
source
<xs:element name="Name" type="xs:string">
  <xs:annotation>
    <xs:documentation>The name of the DWG file</xs:documentation>
  </xs:annotation>
</xs:element>

element DwgFileComponentType/LayerComponents
diagram
children LayerComponent
source
<xs:element name="LayerComponents">
  <xs:annotation>
    <xs:documentation>List of DWG layers</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="LayerComponent" type="DwgLayerComponentType" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>One DWG layer</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element DwgFileComponentType/LayerComponents/LayerComponent
diagram
type DwgLayerComponentType
children Name Selected
source
<xs:element name="LayerComponent" type="DwgLayerComponentType" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>One DWG layer</xs:documentation>
  </xs:annotation>
</xs:element>

complexType DwgLayerComponentType
diagram
children Name Selected
used by
element DwgFileComponentType/LayerComponents/LayerComponent
source
<xs:complexType name="DwgLayerComponentType">
  <xs:annotation>
    <xs:documentation>Specifies a DWG file and its list of layers</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Name" type="xs:string">
      <xs:annotation>
        <xs:documentation>The name of the layer</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Selected" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>Indicates whether this layer is to be extracted when executing the Load Procedure</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element DwgLayerComponentType/Name
diagram
type xs:string
source
<xs:element name="Name" type="xs:string">
  <xs:annotation>
    <xs:documentation>The name of the layer</xs:documentation>
  </xs:annotation>
</xs:element>

element DwgLayerComponentType/Selected
diagram
type xs:boolean
source
<xs:element name="Selected" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>Indicates whether this layer is to be extracted when executing the Load Procedure</xs:documentation>
  </xs:annotation>
</xs:element>

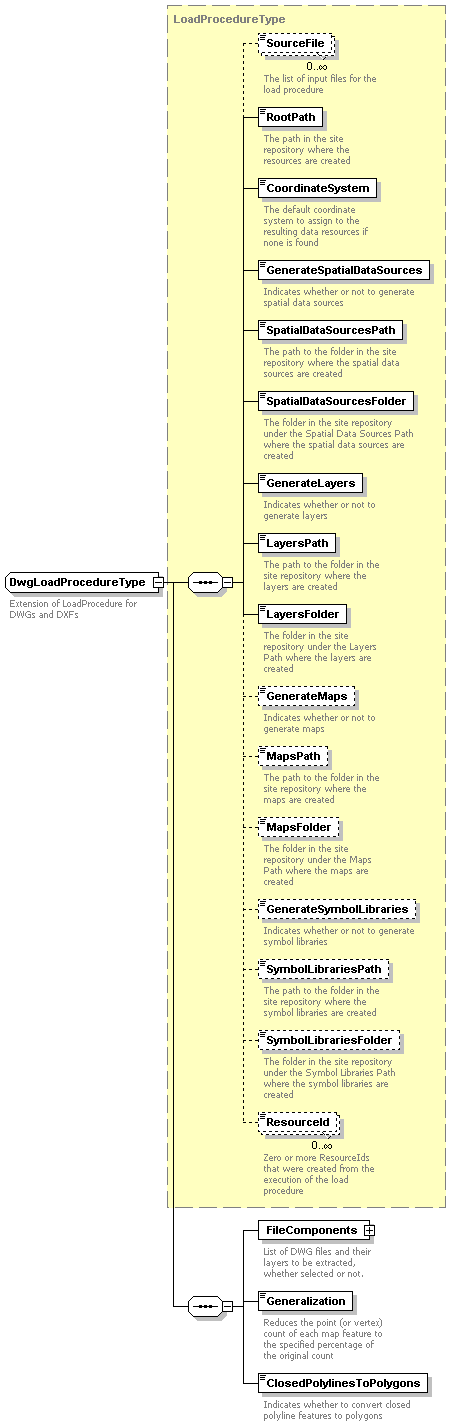

complexType DwgLoadProcedureType
diagram
type extension of LoadProcedureType
children SourceFile RootPath CoordinateSystem GenerateSpatialDataSources SpatialDataSourcesPath SpatialDataSourcesFolder GenerateLayers LayersPath LayersFolder GenerateMaps MapsPath MapsFolder GenerateSymbolLibraries SymbolLibrariesPath SymbolLibrariesFolder ResourceId FileComponents Generalization ClosedPolylinesToPolygons
used by
element LoadProcedureTypeType/DwgLoadProcedure
source
<xs:complexType name="DwgLoadProcedureType">
  <xs:annotation>
    <xs:documentation>Extension of LoadProcedure for DWGs and DXFs</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="LoadProcedureType">
      <xs:sequence>
        <xs:element name="FileComponents">
          <xs:annotation>
            <xs:documentation>List of DWG files and their layers to be extracted, whether selected or not.</xs:documentation>
          </xs:annotation>
          <xs:complexType>
            <xs:sequence>
              <xs:element name="FileComponent" type="DwgFileComponentType" maxOccurs="unbounded">
                <xs:annotation>
                  <xs:documentation>One DWG file and its layers</xs:documentation>
                </xs:annotation>
              </xs:element>
            </xs:sequence>
          </xs:complexType>
        </xs:element>
        <xs:element name="Generalization" type="PercentageType">
          <xs:annotation>
            <xs:documentation>Reduces the point (or vertex) count of each map feature to the specified percentage of the original count</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ClosedPolylinesToPolygons" type="xs:boolean">
          <xs:annotation>
            <xs:documentation>Indicates whether to convert closed polyline features to polygons</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element DwgLoadProcedureType/FileComponents
diagram
children FileComponent
source
<xs:element name="FileComponents">
  <xs:annotation>
    <xs:documentation>List of DWG files and their layers to be extracted, whether selected or not.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="FileComponent" type="DwgFileComponentType" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>One DWG file and its layers</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element DwgLoadProcedureType/FileComponents/FileComponent
diagram
type DwgFileComponentType
children Name LayerComponents
source
<xs:element name="FileComponent" type="DwgFileComponentType" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>One DWG file and its layers</xs:documentation>
  </xs:annotation>
</xs:element>

element DwgLoadProcedureType/Generalization
diagram
type PercentageType
facets
minInclusive 0
maxInclusive 100
source
<xs:element name="Generalization" type="PercentageType">
  <xs:annotation>
    <xs:documentation>Reduces the point (or vertex) count of each map feature to the specified percentage of the original count</xs:documentation>
  </xs:annotation>
</xs:element>

element DwgLoadProcedureType/ClosedPolylinesToPolygons
diagram
type xs:boolean
source
<xs:element name="ClosedPolylinesToPolygons" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>Indicates whether to convert closed polyline features to polygons</xs:documentation>
  </xs:annotation>
</xs:element>

complexType GeoReferenceOverrideType
diagram
children SourceFile LocationX LocationY ScaleX ScaleY
used by
element RasterLoadProcedureType/GeoReferenceOverride
source
<xs:complexType name="GeoReferenceOverrideType">
  <xs:annotation>
    <xs:documentation>Override values to replace geo reference properties from the world file corresponding to the specified image source file.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="SourceFile" type="xs:string">
      <xs:annotation>
        <xs:documentation>The path of the source file to which these geo reference overrides apply.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LocationX" type="xs:double">
      <xs:annotation>
        <xs:documentation>The X-coordinate override of the location specified in the world file corresponding to the specified source file.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LocationY" type="xs:double">
      <xs:annotation>
        <xs:documentation>The Y-coordinate override of the location specified in the world file corresponding to the specified source file.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ScaleX" type="xs:double">
      <xs:annotation>
        <xs:documentation>the X-scale override to replace that specified in the world file corresponding to the specified source file.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ScaleY" type="xs:double">
      <xs:annotation>
        <xs:documentation>the Y-scale override to replace that specified in the world file corresponding to the specified source file.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element GeoReferenceOverrideType/SourceFile
diagram
type xs:string
source
<xs:element name="SourceFile" type="xs:string">
  <xs:annotation>
    <xs:documentation>The path of the source file to which these geo reference overrides apply.</xs:documentation>
  </xs:annotation>
</xs:element>

element GeoReferenceOverrideType/LocationX
diagram
type xs:double
source
<xs:element name="LocationX" type="xs:double">
  <xs:annotation>
    <xs:documentation>The X-coordinate override of the location specified in the world file corresponding to the specified source file.</xs:documentation>
  </xs:annotation>
</xs:element>

element GeoReferenceOverrideType/LocationY
diagram
type xs:double
source
<xs:element name="LocationY" type="xs:double">
  <xs:annotation>
    <xs:documentation>The Y-coordinate override of the location specified in the world file corresponding to the specified source file.</xs:documentation>
  </xs:annotation>
</xs:element>

element GeoReferenceOverrideType/ScaleX
diagram
type xs:double
source
<xs:element name="ScaleX" type="xs:double">
  <xs:annotation>
    <xs:documentation>the X-scale override to replace that specified in the world file corresponding to the specified source file.</xs:documentation>
  </xs:annotation>
</xs:element>

element GeoReferenceOverrideType/ScaleY
diagram
type xs:double
source
<xs:element name="ScaleY" type="xs:double">
  <xs:annotation>
    <xs:documentation>the Y-scale override to replace that specified in the world file corresponding to the specified source file.</xs:documentation>
  </xs:annotation>
</xs:element>

complexType LoadProcedureType
diagram
children SourceFile RootPath CoordinateSystem GenerateSpatialDataSources SpatialDataSourcesPath SpatialDataSourcesFolder GenerateLayers LayersPath LayersFolder GenerateMaps MapsPath MapsFolder GenerateSymbolLibraries SymbolLibrariesPath SymbolLibrariesFolder ResourceId
used by
complexTypes DwfLoadProcedureType DwgLoadProcedureType RasterLoadProcedureType SdfLoadProcedureType ShpLoadProcedureType
source
<xs:complexType name="LoadProcedureType">
  <xs:annotation>
    <xs:documentation>Base type of the load procedures</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="SourceFile" type="xs:string" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>The list of input files for the load procedure</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RootPath" type="xs:string">
      <xs:annotation>
        <xs:documentation>The path in the site repository where the resources are created</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CoordinateSystem" type="xs:string">
      <xs:annotation>
        <xs:documentation>The default coordinate system to assign to the resulting data resources if none is found</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="GenerateSpatialDataSources" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>Indicates whether or not to generate spatial data sources</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SpatialDataSourcesPath" type="xs:string">
      <xs:annotation>
        <xs:documentation>The path to the folder in the site repository where the spatial data sources are created</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SpatialDataSourcesFolder" type="xs:string">
      <xs:annotation>
        <xs:documentation>The folder in the site repository under the Spatial Data Sources Path where the spatial data sources are created</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="GenerateLayers" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>Indicates whether or not to generate layers</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LayersPath" type="xs:string">
      <xs:annotation>
        <xs:documentation>The path to the folder in the site repository where the layers are created</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LayersFolder" type="xs:string">
      <xs:annotation>
        <xs:documentation>The folder in the site repository under the Layers Path where the layers are created</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="GenerateMaps" type="xs:boolean" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Indicates whether or not to generate maps</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MapsPath" type="xs:string" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The path to the folder in the site repository where the maps are created</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MapsFolder" type="xs:string" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The folder in the site repository under the Maps Path where the maps are created</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="GenerateSymbolLibraries" type="xs:boolean" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Indicates whether or not to generate symbol libraries</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SymbolLibrariesPath" type="xs:string" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The path to the folder in the site repository where the symbol libraries are created</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SymbolLibrariesFolder" type="xs:string" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The folder in the site repository under the Symbol Libraries Path where the symbol libraries are created</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ResourceId" type="xs:string" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Zero or more ResourceIds that were created from the execution of the load procedure</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element LoadProcedureType/SourceFile
diagram
type xs:string
source
<xs:element name="SourceFile" type="xs:string" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The list of input files for the load procedure</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/RootPath
diagram
type xs:string
source
<xs:element name="RootPath" type="xs:string">
  <xs:annotation>
    <xs:documentation>The path in the site repository where the resources are created</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/CoordinateSystem
diagram
type xs:string
source
<xs:element name="CoordinateSystem" type="xs:string">
  <xs:annotation>
    <xs:documentation>The default coordinate system to assign to the resulting data resources if none is found</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/GenerateSpatialDataSources
diagram
type xs:boolean
source
<xs:element name="GenerateSpatialDataSources" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>Indicates whether or not to generate spatial data sources</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/SpatialDataSourcesPath
diagram
type xs:string
source
<xs:element name="SpatialDataSourcesPath" type="xs:string">
  <xs:annotation>
    <xs:documentation>The path to the folder in the site repository where the spatial data sources are created</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/SpatialDataSourcesFolder
diagram
type xs:string
source
<xs:element name="SpatialDataSourcesFolder" type="xs:string">
  <xs:annotation>
    <xs:documentation>The folder in the site repository under the Spatial Data Sources Path where the spatial data sources are created</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/GenerateLayers
diagram
type xs:boolean
source
<xs:element name="GenerateLayers" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>Indicates whether or not to generate layers</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/LayersPath
diagram
type xs:string
source
<xs:element name="LayersPath" type="xs:string">
  <xs:annotation>
    <xs:documentation>The path to the folder in the site repository where the layers are created</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/LayersFolder
diagram
type xs:string
source
<xs:element name="LayersFolder" type="xs:string">
  <xs:annotation>
    <xs:documentation>The folder in the site repository under the Layers Path where the layers are created</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/GenerateMaps
diagram
type xs:boolean
source
<xs:element name="GenerateMaps" type="xs:boolean" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Indicates whether or not to generate maps</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/MapsPath
diagram
type xs:string
source
<xs:element name="MapsPath" type="xs:string" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The path to the folder in the site repository where the maps are created</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/MapsFolder
diagram
type xs:string
source
<xs:element name="MapsFolder" type="xs:string" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The folder in the site repository under the Maps Path where the maps are created</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/GenerateSymbolLibraries
diagram
type xs:boolean
source
<xs:element name="GenerateSymbolLibraries" type="xs:boolean" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Indicates whether or not to generate symbol libraries</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/SymbolLibrariesPath
diagram
type xs:string
source
<xs:element name="SymbolLibrariesPath" type="xs:string" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The path to the folder in the site repository where the symbol libraries are created</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/SymbolLibrariesFolder
diagram
type xs:string
source
<xs:element name="SymbolLibrariesFolder" type="xs:string" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The folder in the site repository under the Symbol Libraries Path where the symbol libraries are created</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureType/ResourceId
diagram
type xs:string
source
<xs:element name="ResourceId" type="xs:string" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Zero or more ResourceIds that were created from the execution of the load procedure</xs:documentation>
  </xs:annotation>
</xs:element>

complexType LoadProcedureTypeType
diagram
children SdfLoadProcedure DwfLoadProcedure ShpLoadProcedure DwgLoadProcedure RasterLoadProcedure
used by
element LoadProcedure
source
<xs:complexType name="LoadProcedureTypeType">
  <xs:annotation>
    <xs:documentation>Specification of a load procedure</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="SdfLoadProcedure" type="SdfLoadProcedureType">
      <xs:annotation>
        <xs:documentation>Load procedure for SDFs</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DwfLoadProcedure" type="DwfLoadProcedureType">
      <xs:annotation>
        <xs:documentation>Load procedure for DWFs</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ShpLoadProcedure" type="ShpLoadProcedureType">
      <xs:annotation>
        <xs:documentation>Load procedure for SHPs</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DwgLoadProcedure" type="DwgLoadProcedureType"/>
    <xs:element name="RasterLoadProcedure" type="RasterLoadProcedureType"/>
  </xs:choice>
</xs:complexType>

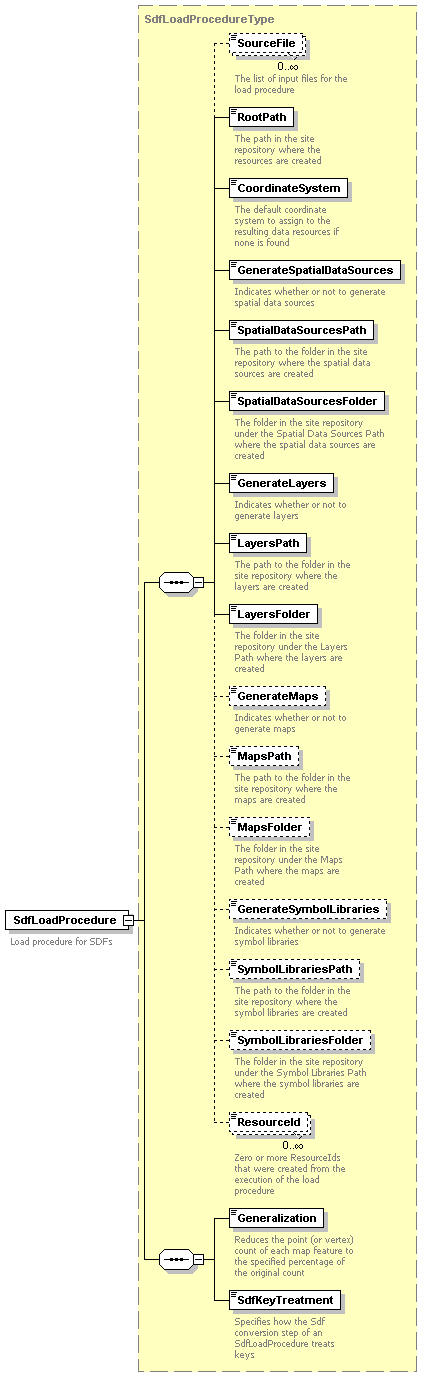

element LoadProcedureTypeType/SdfLoadProcedure
diagram
type SdfLoadProcedureType
children SourceFile RootPath CoordinateSystem GenerateSpatialDataSources SpatialDataSourcesPath SpatialDataSourcesFolder GenerateLayers LayersPath LayersFolder GenerateMaps MapsPath MapsFolder GenerateSymbolLibraries SymbolLibrariesPath SymbolLibrariesFolder ResourceId Generalization SdfKeyTreatment
source
<xs:element name="SdfLoadProcedure" type="SdfLoadProcedureType">
  <xs:annotation>
    <xs:documentation>Load procedure for SDFs</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureTypeType/DwfLoadProcedure
diagram
type DwfLoadProcedureType
children SourceFile RootPath CoordinateSystem GenerateSpatialDataSources SpatialDataSourcesPath SpatialDataSourcesFolder GenerateLayers LayersPath LayersFolder GenerateMaps MapsPath MapsFolder GenerateSymbolLibraries SymbolLibrariesPath SymbolLibrariesFolder ResourceId
source
<xs:element name="DwfLoadProcedure" type="DwfLoadProcedureType">
  <xs:annotation>
    <xs:documentation>Load procedure for DWFs</xs:documentation>
  </xs:annotation>
</xs:element>

element LoadProcedureTypeType/ShpLoadProcedure
diagram
type ShpLoadProcedureType
children SourceFile RootPath CoordinateSystem GenerateSpatialDataSources SpatialDataSourcesPath SpatialDataSourcesFolder GenerateLayers LayersPath LayersFolder GenerateMaps MapsPath MapsFolder GenerateSymbolLibraries SymbolLibrariesPath SymbolLibrariesFolder ResourceId Generalization ConvertToSdf
source
<xs:element name="ShpLoadProcedure" type="ShpLoadProcedureType">
  <xs:annotation>
    <xs:documentation>Load procedure for SHPs</xs:documentation>
  </xs:annotation>
</xs:element>

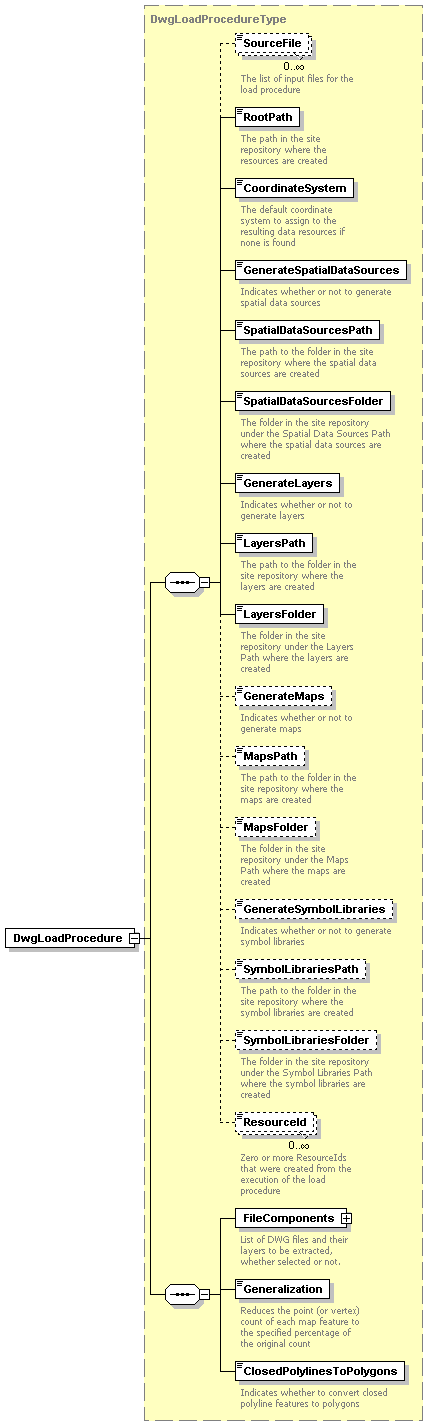

element LoadProcedureTypeType/DwgLoadProcedure
diagram
type DwgLoadProcedureType
children SourceFile RootPath CoordinateSystem GenerateSpatialDataSources SpatialDataSourcesPath SpatialDataSourcesFolder GenerateLayers LayersPath LayersFolder GenerateMaps MapsPath MapsFolder GenerateSymbolLibraries SymbolLibrariesPath SymbolLibrariesFolder ResourceId FileComponents Generalization ClosedPolylinesToPolygons
source
<xs:element name="DwgLoadProcedure" type="DwgLoadProcedureType"/>

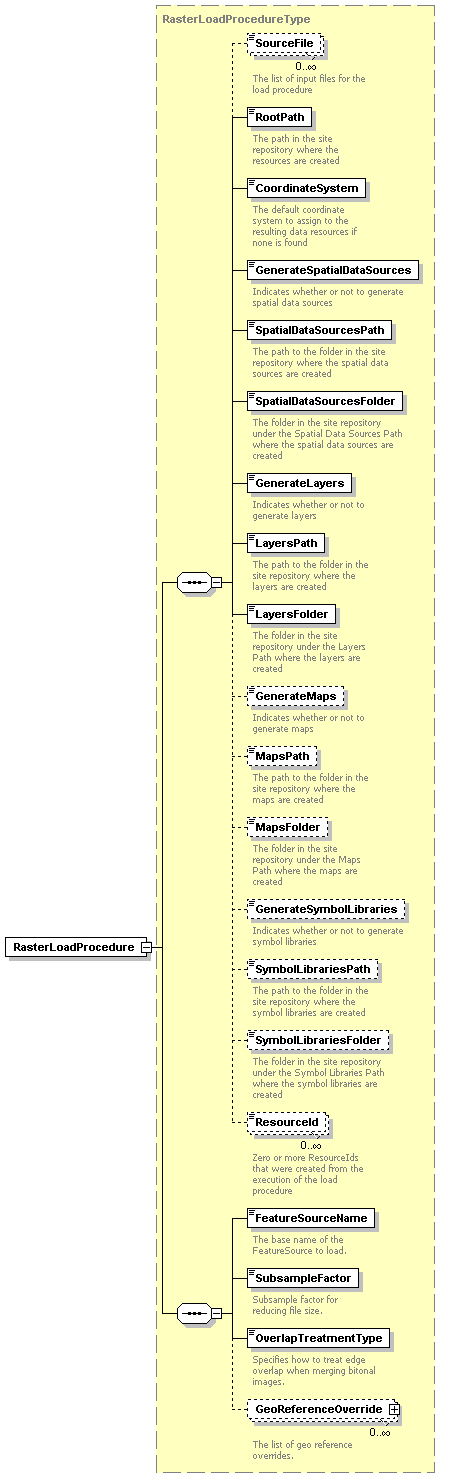

element LoadProcedureTypeType/RasterLoadProcedure
diagram
type RasterLoadProcedureType
children SourceFile RootPath CoordinateSystem GenerateSpatialDataSources SpatialDataSourcesPath SpatialDataSourcesFolder GenerateLayers LayersPath LayersFolder GenerateMaps MapsPath MapsFolder GenerateSymbolLibraries SymbolLibrariesPath SymbolLibrariesFolder ResourceId FeatureSourceName SubsampleFactor OverlapTreatmentType GeoReferenceOverride
source
<xs:element name="RasterLoadProcedure" type="RasterLoadProcedureType"/>

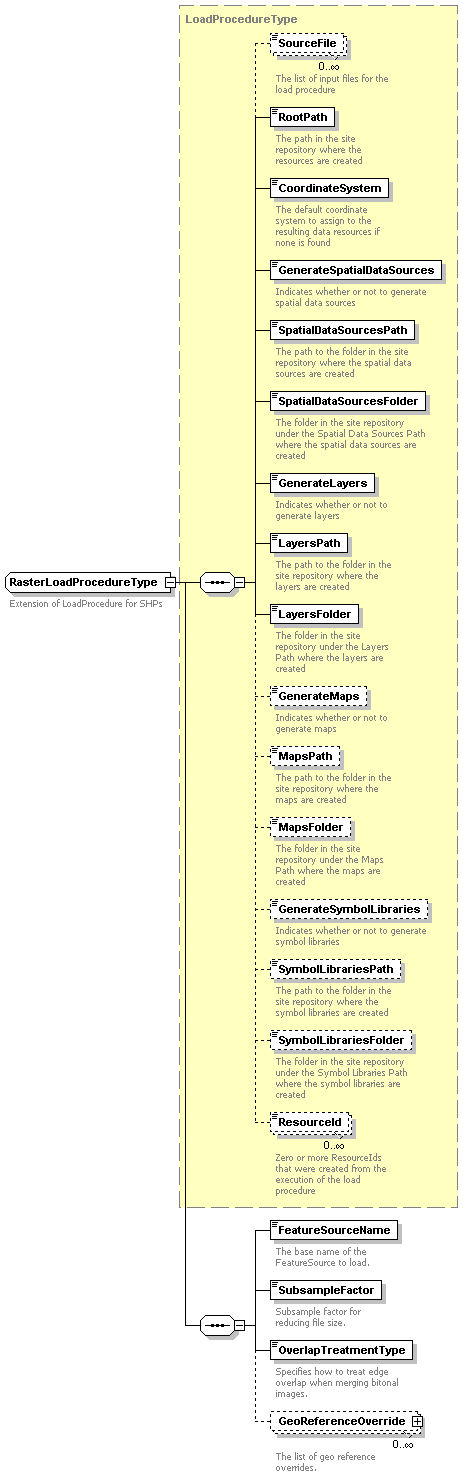

complexType RasterLoadProcedureType
diagram
type extension of LoadProcedureType
children SourceFile RootPath CoordinateSystem GenerateSpatialDataSources SpatialDataSourcesPath SpatialDataSourcesFolder GenerateLayers LayersPath LayersFolder GenerateMaps MapsPath MapsFolder GenerateSymbolLibraries SymbolLibrariesPath SymbolLibrariesFolder ResourceId FeatureSourceName SubsampleFactor OverlapTreatmentType GeoReferenceOverride
used by
element LoadProcedureTypeType/RasterLoadProcedure
source
<xs:complexType name="RasterLoadProcedureType">
  <xs:annotation>
    <xs:documentation>Extension of LoadProcedure for SHPs</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="LoadProcedureType">
      <xs:sequence>
        <xs:element name="FeatureSourceName" type="xs:string">
          <xs:annotation>
            <xs:documentation>The base name of the FeatureSource to load.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="SubsampleFactor" type="xs:double">
          <xs:annotation>
            <xs:documentation>Subsample factor for reducing file size.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="OverlapTreatmentType" type="OverlapTreatmentType">
          <xs:annotation>
            <xs:documentation>Specifies how to treat edge overlap when merging bitonal images.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="GeoReferenceOverride" type="GeoReferenceOverrideType" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>The list of geo reference overrides.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element RasterLoadProcedureType/FeatureSourceName
diagram
type xs:string
source
<xs:element name="FeatureSourceName" type="xs:string">
  <xs:annotation>
    <xs:documentation>The base name of the FeatureSource to load.</xs:documentation>
  </xs:annotation>
</xs:element>

element RasterLoadProcedureType/SubsampleFactor
diagram
type xs:double
source
<xs:element name="SubsampleFactor" type="xs:double">
  <xs:annotation>
    <xs:documentation>Subsample factor for reducing file size.</xs:documentation>
  </xs:annotation>
</xs:element>

element RasterLoadProcedureType/OverlapTreatmentType
diagram
type OverlapTreatmentType
facets
enumeration None
enumeration ForegroundOn
enumeration ForegroundOff
source
<xs:element name="OverlapTreatmentType" type="OverlapTreatmentType">
  <xs:annotation>
    <xs:documentation>Specifies how to treat edge overlap when merging bitonal images.</xs:documentation>
  </xs:annotation>
</xs:element>

element RasterLoadProcedureType/GeoReferenceOverride
diagram
type GeoReferenceOverrideType
children SourceFile LocationX LocationY ScaleX ScaleY
source
<xs:element name="GeoReferenceOverride" type="GeoReferenceOverrideType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The list of geo reference overrides.</xs:documentation>
  </xs:annotation>
</xs:element>

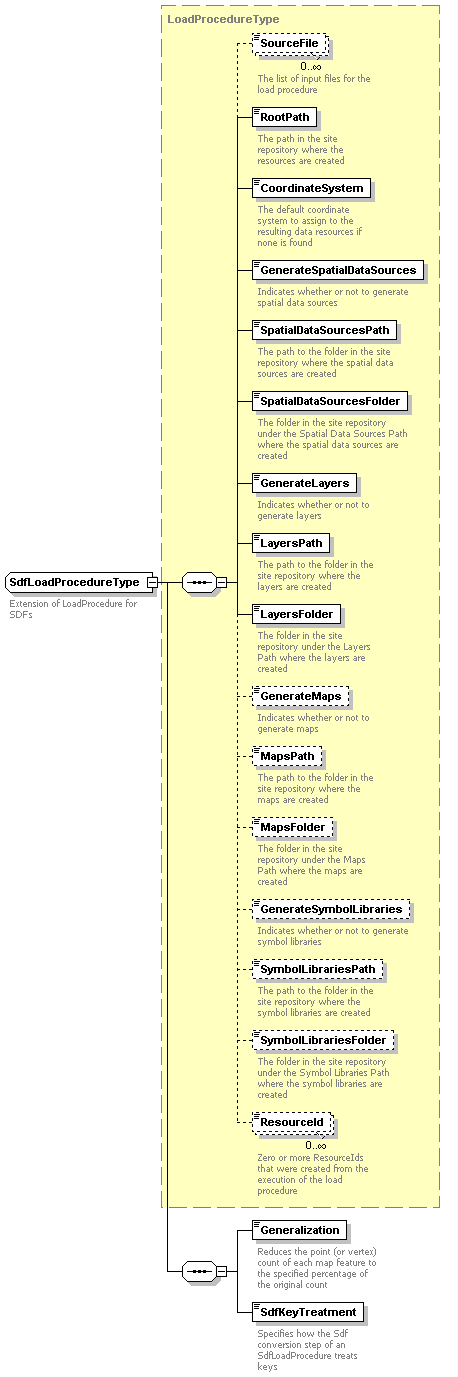

complexType SdfLoadProcedureType
diagram
type extension of LoadProcedureType
children SourceFile RootPath CoordinateSystem GenerateSpatialDataSources SpatialDataSourcesPath SpatialDataSourcesFolder GenerateLayers LayersPath LayersFolder GenerateMaps MapsPath MapsFolder GenerateSymbolLibraries SymbolLibrariesPath SymbolLibrariesFolder ResourceId Generalization SdfKeyTreatment
used by
element LoadProcedureTypeType/SdfLoadProcedure
source
<xs:complexType name="SdfLoadProcedureType">
  <xs:annotation>
    <xs:documentation>Extension of LoadProcedure for SDFs</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="LoadProcedureType">
      <xs:sequence>
        <xs:element name="Generalization" type="PercentageType">
          <xs:annotation>
            <xs:documentation>Reduces the point (or vertex) count of each map feature to the specified percentage of the original count</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="SdfKeyTreatment" type="SdfKeyTreatmentType">
          <xs:annotation>
            <xs:documentation>Specifies how the Sdf conversion step of an SdfLoadProcedure treats keys</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element SdfLoadProcedureType/Generalization
diagram
type PercentageType
facets
minInclusive 0
maxInclusive 100
source
<xs:element name="Generalization" type="PercentageType">
  <xs:annotation>
    <xs:documentation>Reduces the point (or vertex) count of each map feature to the specified percentage of the original count</xs:documentation>
  </xs:annotation>
</xs:element>

element SdfLoadProcedureType/SdfKeyTreatment
diagram
type SdfKeyTreatmentType
facets
enumeration AutogenerateAll
enumeration DiscardDuplicates
enumeration MergeDuplicates
source
<xs:element name="SdfKeyTreatment" type="SdfKeyTreatmentType">
  <xs:annotation>
    <xs:documentation>Specifies how the Sdf conversion step of an SdfLoadProcedure treats keys</xs:documentation>
  </xs:annotation>
</xs:element>

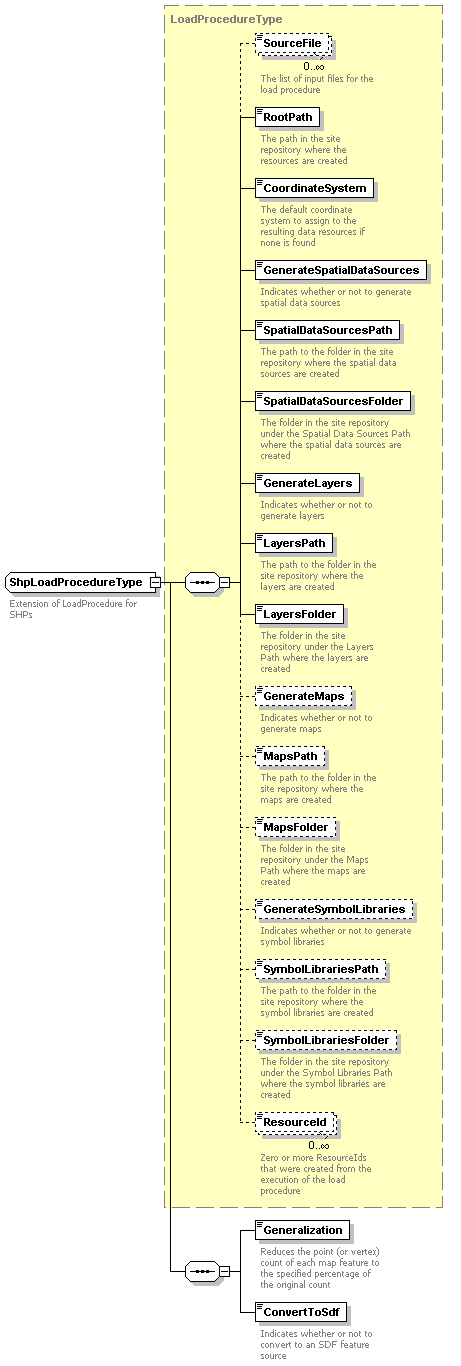

complexType ShpLoadProcedureType
diagram
type extension of LoadProcedureType
children SourceFile RootPath CoordinateSystem GenerateSpatialDataSources SpatialDataSourcesPath SpatialDataSourcesFolder GenerateLayers LayersPath LayersFolder GenerateMaps MapsPath MapsFolder GenerateSymbolLibraries SymbolLibrariesPath SymbolLibrariesFolder ResourceId Generalization ConvertToSdf
used by
element LoadProcedureTypeType/ShpLoadProcedure
source
<xs:complexType name="ShpLoadProcedureType">
  <xs:annotation>
    <xs:documentation>Extension of LoadProcedure for SHPs</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="LoadProcedureType">
      <xs:sequence>
        <xs:element name="Generalization" type="PercentageType">
          <xs:annotation>
            <xs:documentation>Reduces the point (or vertex) count of each map feature to the specified percentage of the original count</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ConvertToSdf" type="xs:boolean">
          <xs:annotation>
            <xs:documentation>Indicates whether or not to convert to an SDF feature source</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element ShpLoadProcedureType/Generalization
diagram
type PercentageType
facets
minInclusive 0
maxInclusive 100
source
<xs:element name="Generalization" type="PercentageType">
  <xs:annotation>
    <xs:documentation>Reduces the point (or vertex) count of each map feature to the specified percentage of the original count</xs:documentation>
  </xs:annotation>
</xs:element>

element ShpLoadProcedureType/ConvertToSdf
diagram
type xs:boolean
source
<xs:element name="ConvertToSdf" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>Indicates whether or not to convert to an SDF feature source</xs:documentation>
  </xs:annotation>
</xs:element>

simpleType OverlapTreatmentType
type restriction of xs:string
used by
element RasterLoadProcedureType/OverlapTreatmentType
facets
enumeration None
enumeration ForegroundOn
enumeration ForegroundOff
source
<xs:simpleType name="OverlapTreatmentType">
  <xs:annotation>
    <xs:documentation>Specifies how to treat edge overlap when merging bitonal images.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="None">
      <xs:annotation>
        <xs:documentation>No bitonal merge.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ForegroundOn">
      <xs:annotation>
        <xs:documentation>Forground pixels are the on bits.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="ForegroundOff">
      <xs:annotation>
        <xs:documentation>Forground pixels are the off bits.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

simpleType PercentageType
type restriction of xs:double
used by
elements SdfLoadProcedureType/Generalization ShpLoadProcedureType/Generalization DwgLoadProcedureType/Generalization
facets
minInclusive 0
maxInclusive 100
source
<xs:simpleType name="PercentageType">
  <xs:annotation>
    <xs:documentation>A percentage value</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:double">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="100"/>
  </xs:restriction>
</xs:simpleType>

simpleType SdfKeyTreatmentType
type restriction of xs:string
used by
element SdfLoadProcedureType/SdfKeyTreatment
facets
enumeration AutogenerateAll
enumeration DiscardDuplicates
enumeration MergeDuplicates
source
<xs:simpleType name="SdfKeyTreatmentType">
  <xs:annotation>
    <xs:documentation>Specifies how the Sdf conversion step of an SdfLoadProcedure treats keys</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AutogenerateAll">
      <xs:annotation>
        <xs:documentation>All keys in the original Sdf file are replaced in the converted Sdf file by an automatically generated unique key</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="DiscardDuplicates">
      <xs:annotation>
        <xs:documentation>The keys in the original Sdf file are maintaind in the converted Sdf file, and only the first occurance of a feature associated with a duplicate key in the original Sdf file will be written to the converted Sdf file</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MergeDuplicates">
      <xs:annotation>
        <xs:documentation>The keys in the original Sdf file are maintaind in the converted Sdf file, and all of the features associated with a duplicate key in the original Sdf file will be merged into a single feature in the converted Sdf file</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
